Industrial Insulation Services
Our custom thermal insulation services include design, material supply, custom fabrication and installation for the following:
Triple Valiant Engineering & Services Sdn Bhd is a company, is a full service insulation contractor that specializes in petrochemical, chemical, petroleum refining, ethanol, fertilizer, industrial, and manufacturing projects and provides service to construction locations nationwide. Our combined experience, expertise, and technical competence in the construction and insulation industry has resulted in a long list of satisfied customers.
Our main services
Industrial Insulation
Thermal insulation
The provision of thermal insulation at industrial facilities is often initiated by a desire to increase safety and process reliability, and at the same time to reduce energy consumption and CO2 emissions.

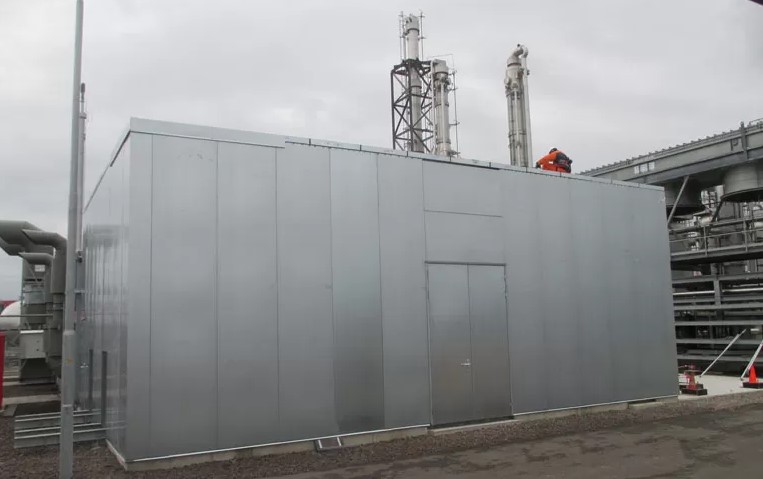

Acoustic insulation
High noise levels in the industry often occur when processes are operated at high pressure and with fast moving or turbulent media. Acoustic insulation systems reduce noise emissions to the environment.

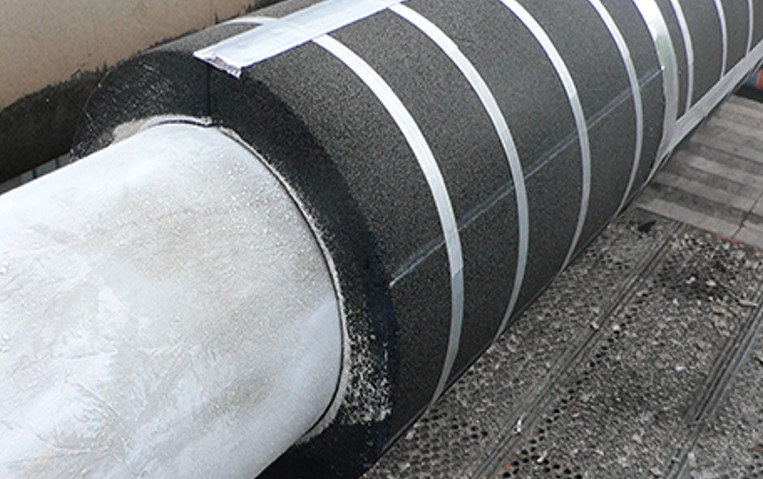

Personnel Protection
Personnel protection (PP) insulation is used to prevent contact between personnel and hot operating surfaces.

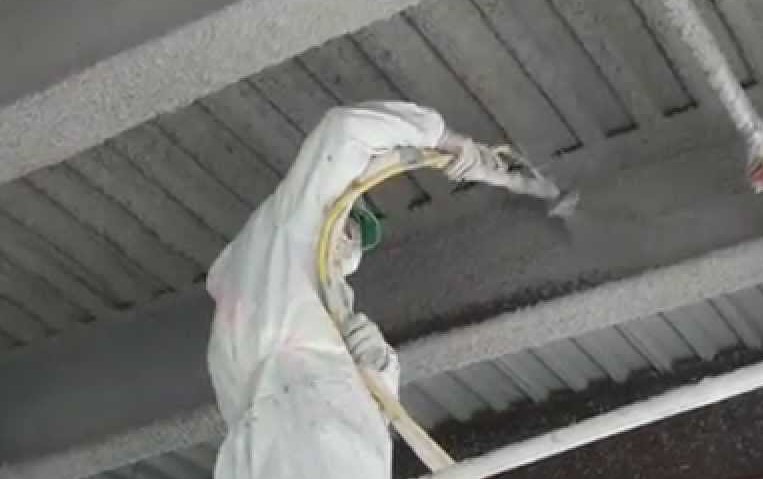

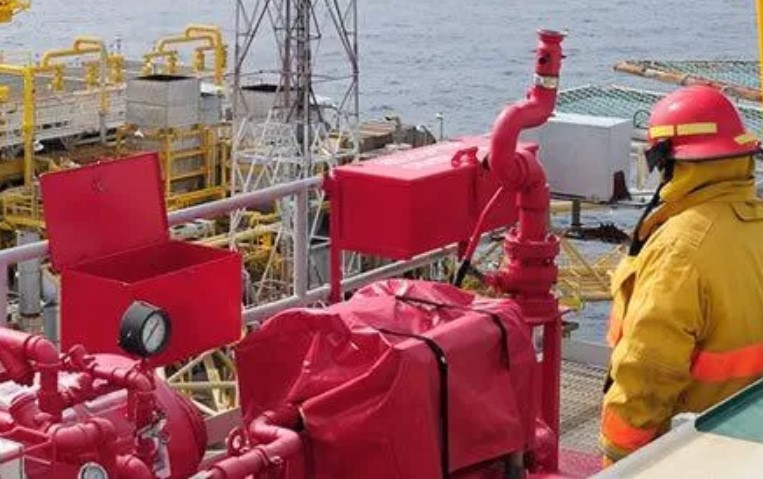

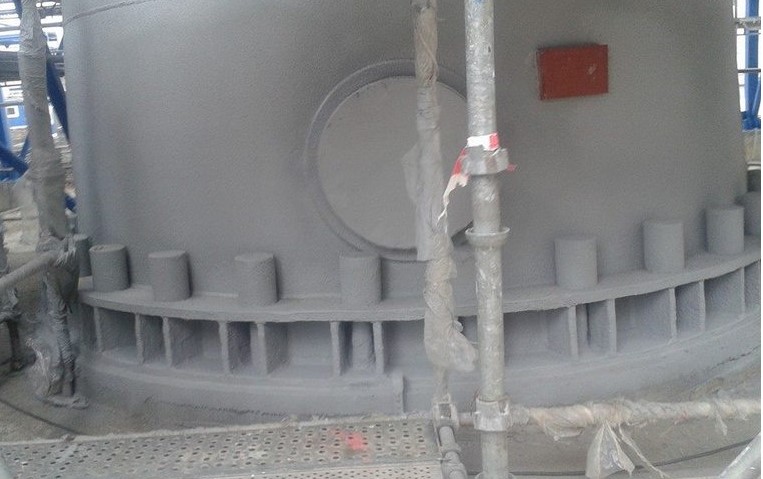

Fireproofing insulation
Fire proof insulation and passive fire protection for industrial applications requires specialized expertise and experience. TVE have this experience in the offshore, power plants and chemical production facilities.

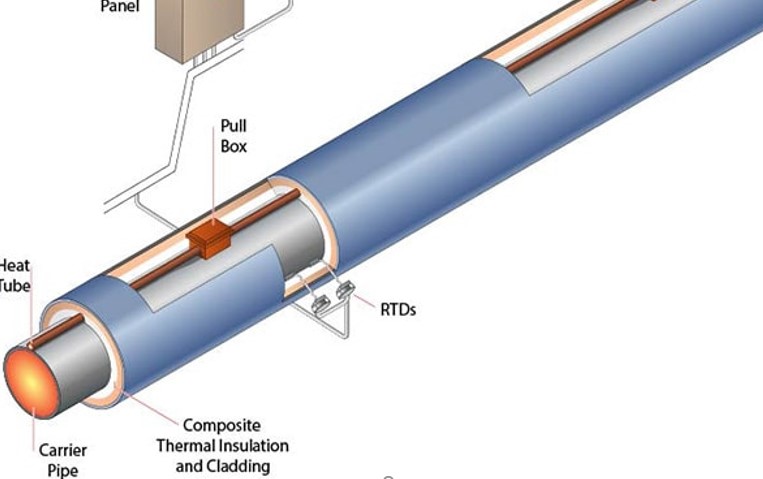

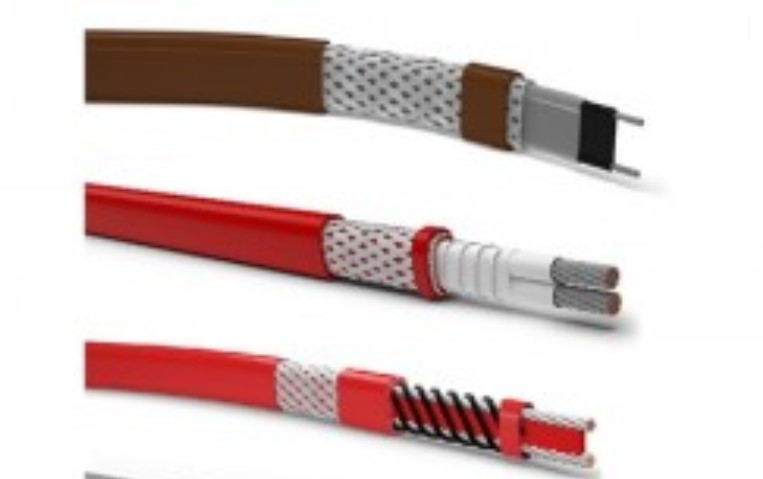

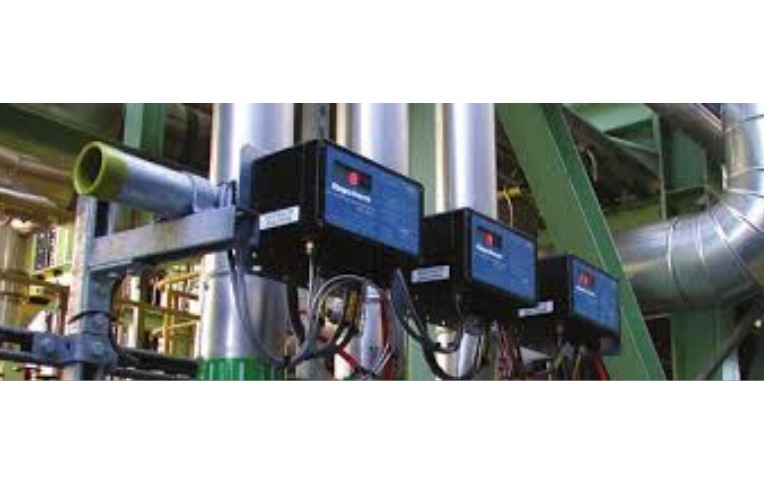

Electrical Heat Tracing

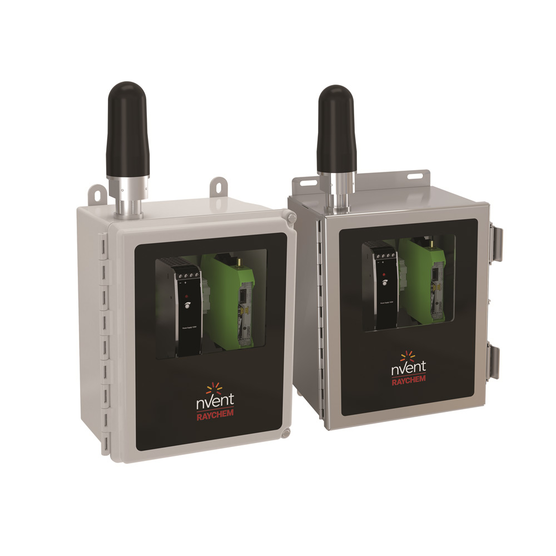

Electrical Heat Tracing, tracer cable for surface heating, is a system used to maintain or raise the temperature of pipes and vessels using heat tracing cables. Self-regulating heat tracing technology, RAYCHEM solutions are globally recognized as a leading provider of complete electrical trace heating systems. We offer a full suite of control and monitoring products and connected solutions for almost any application.

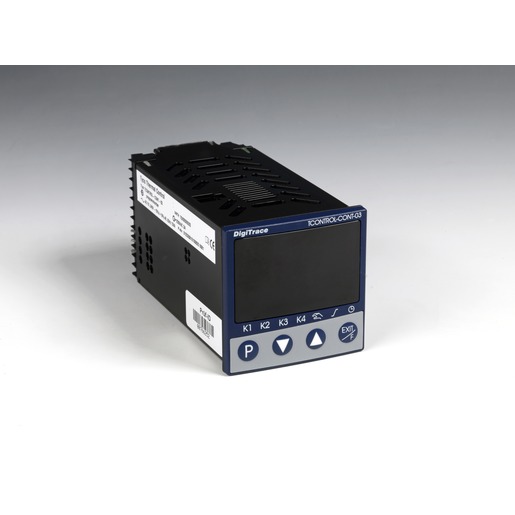

Raychem Raystat V5 Thermostat
The nVent RAYCHEM RAYSTAT V5 controller is designed for operation with the nVent RAYCHEM XL-TRACE, FS and ETL self-regulating heating cables.
- Line sensing and/or ambient sensing for safe area location.
- Alarm relay with change over contact to signal power, temperature or communication problems.
- Pipe temperature monitoring with high and low temperature alarm.
- Offsite configurable – can be set up prior to final installation.
- On wall mountable for outdoor location.
Catalog

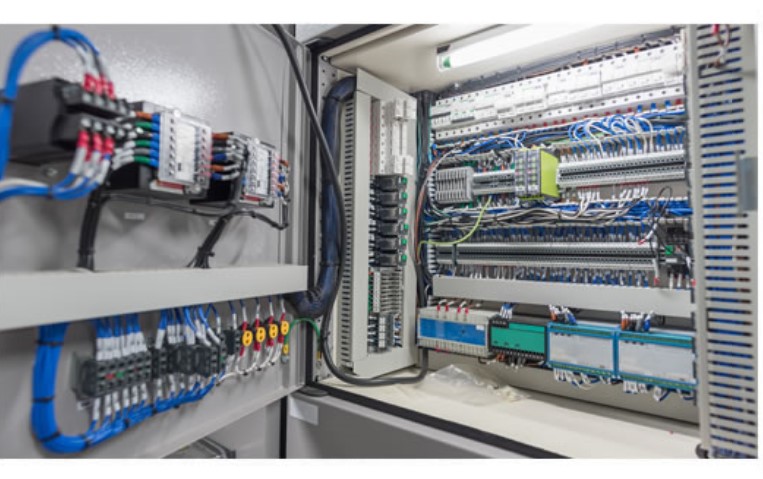

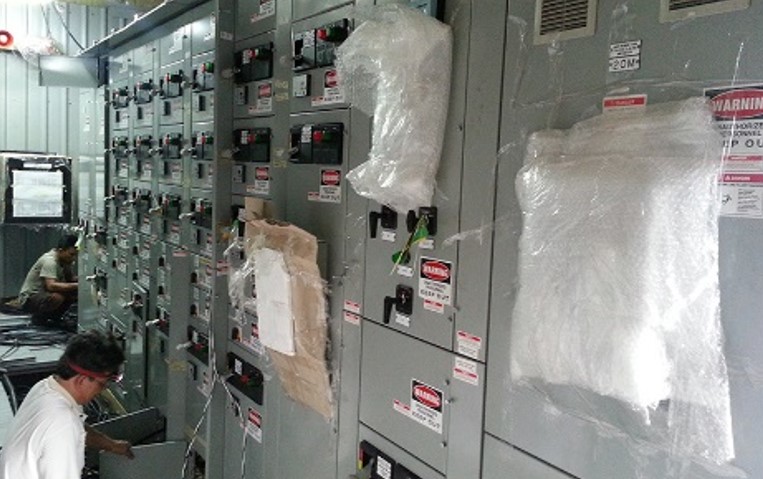

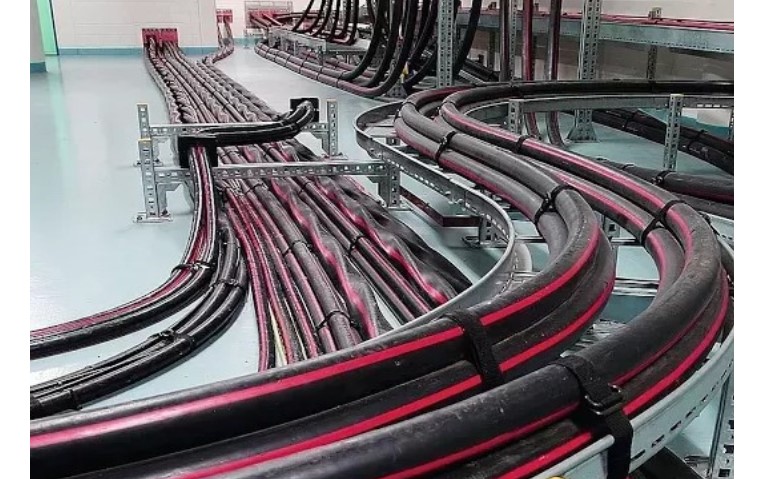

Electrical Wiring
Electrical installation of power cabling installation and termination and associated devices such as switches, distribution boards, sockets, and light fittings. Design, supply and installation of Electrical Equipment System, Testing, Commissioning & Maintenance of electrical installation.

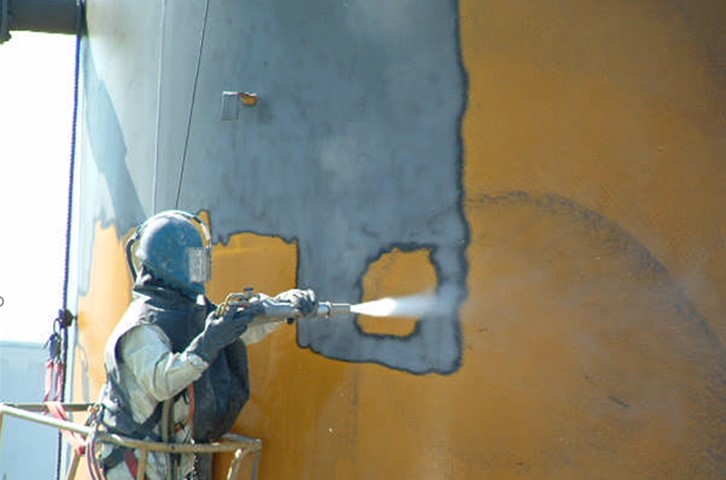

Blasting
All blasting and painting works are performed by a highly trained workforce in achieving the highest quality standards in compliance to the ISO 9001:2015.
Various abrasives are used for sandblasting such as garnet, steel shot/grit, glass beads, aluminium oxide, coal slag and aluminium silicate.

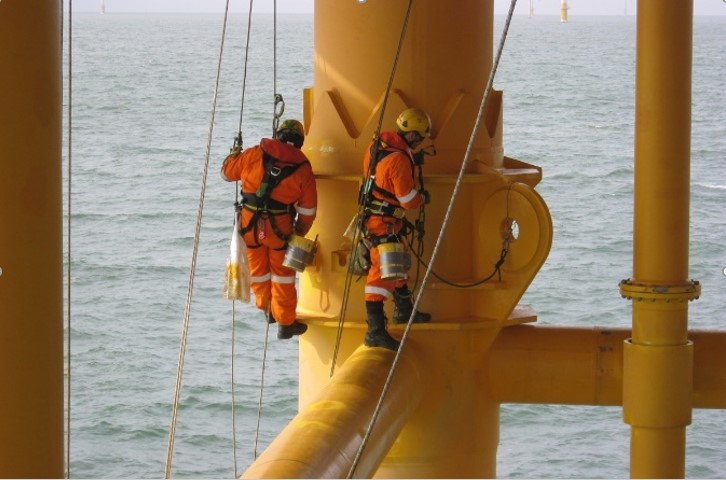

Painting
A 3-coat paint system consists of a primary coat, an intermediate coat, and a top coat of a color or finish typically specified by the end user. TVE has vast experience in industrial maintenance painting works.

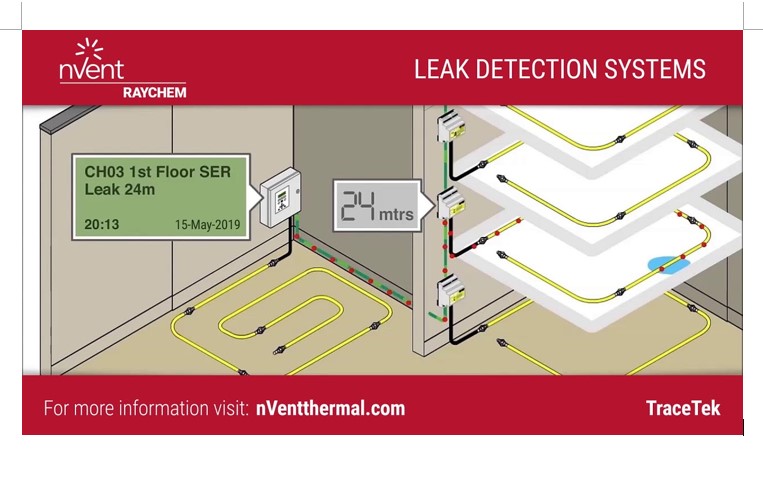

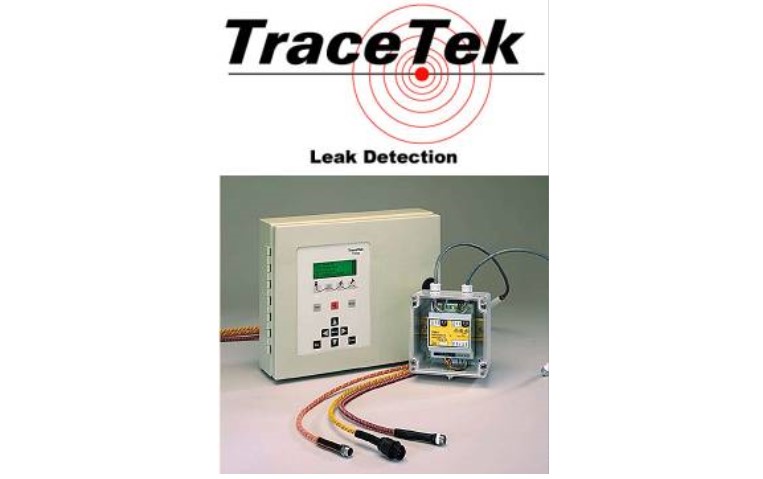

Leak Detection Systems
TraceTek leak detection solutions quickly and accurately detect and pinpoint the source of a leak providing you with critical information to take swift action and avoid damage. Suitable for fuel and water, TraceTek systems are complete modular solutions and provide reliable and long-term service. TraceTek are ideal solutions for monitoring leaks on pipeline, storage tanks and data centers.
Catalog
Leak Detection Product

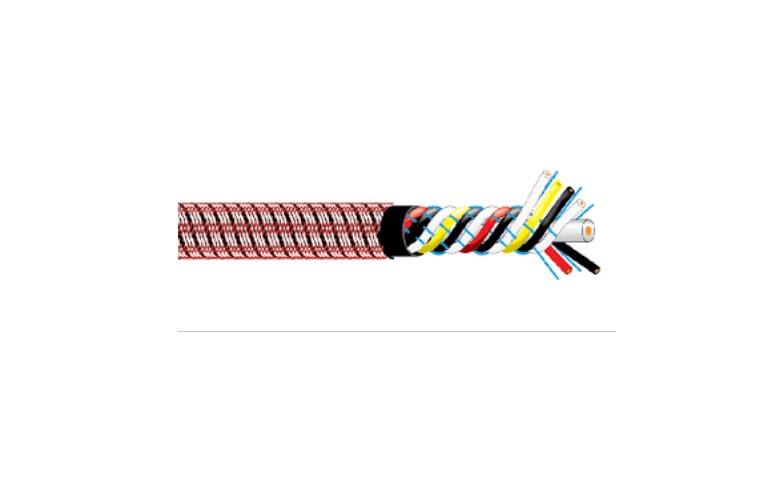

TT1000
Tracetek TT1000 sensing cables detect the presence of water at any point along the length. Installed with the TT-SIM modules.
TT1100-OHP
The TT1100-OHP sensor cable is designed for use on insulated pipes. It detects water presence at any point along the pipe length.
TT3000
Used to detect spills and leaks of aqueous chemicals which include waste-water, acids, hazardous waste streams, etc.
TTFFS
TTFFS-100 detects liquid hydrocarbon fuels such as naphtha, bitumen, crude and jet fuel.
TTSIM-1
A leak detection sim module designed for Tracetek sensing cables. It can accommodate up to 5000 ft. (1500m) of sensing cables.
TTSIM-1A
A leak detection sim module designed for Tracetek sensing cables. It can accommodate up to 500 ft. (150m) of sensing cables.
TTDM-128
Leak detection primary alarm panel designed for Tracetek sensing cables. TTDM-128 module directly monitors up to 1500 m (5000 ft) of sensor cable and a network of up to 128 remote Tracetek modules. The remote modules may be a combination of sensor interface modules (TTSIM), relay modules (TT-NRM) or additional TTDM-128 modules.
Senkox HSD™ Linear Hot Spot Detectors are advanced multi-functional detectors that provide early detection of fire or conditions of overheating to protected areas or equipment.
Senkox HSD™ Linear Hot Spot Detectors can detect the real-time temperature, position and size of hot spots along the Senkox HSD™ Linear Heat Sensor cable. They can also provide the rate of temperature increase, and the temperature difference between hot spots and the ambient temperature. The detectors have various types of output interfaces, such as relay outputs, analog output (4~20 mA or 0~5V), and serial communication port (RS485 or RS232, Modbus/RTU protocol).

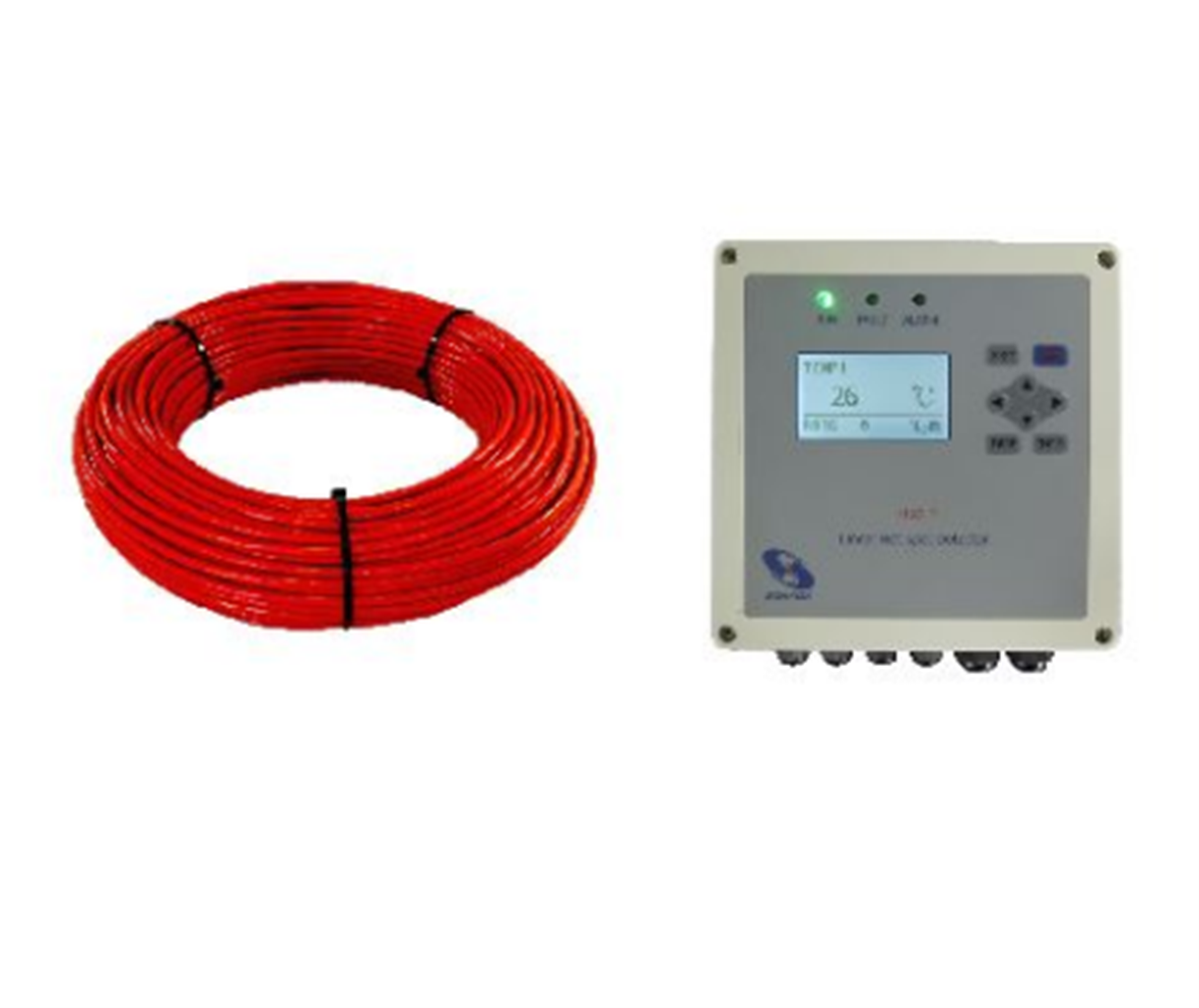

The detector consists of two major components: An HSD™ Linear Heat Sensor cable and an HSD™ DAQ Module.
System Features
- Innovative HSD™ Linear Hot Spot Detection technology provides early detection of overheating
- Linear sensing technology provides line coverage with superior sensitivity.
- Real-time temperature measurement of temperatures ranging from -40°C to 600°C.
- Detect early overheating temperature from -40°C to 80°C.
- Rapid heat response time.
- Rate of temperature change (ROTC) detection.
- Enhanced alarm feature
- Pre-alarm and alarm set point are software adjustable from -40°C to 600°C.
- Full supervision for trouble alarms, include short and open circuit.
- Rate of temperature change (ROTC) alarm.
- Rugged and re-usable Linear Heat Sensor
- Innovation sensor materials and process provide stable function and uniform sensitivity.
- Sensors withstand high abrasion, high temperature and high pressure.
- No damage to sensors after alarm, re-usable.
- Enhanced, comprehensive hot spot detection solution
- Real-time hot spot temperatures.
- Hot spot position(s).
- Hot spot size(s).
- Rate of temperature change.
- Temperature difference between hot spot and ambient temperature.
- Easy installation and maintenance
- Intrinsically safe.
- Simple system layout, plug and play installation.
- Modular system structure, easy to maintenance and replace.
- Can be used as field alarm system.
- Can be connected to user existing DCS or monitoring system.

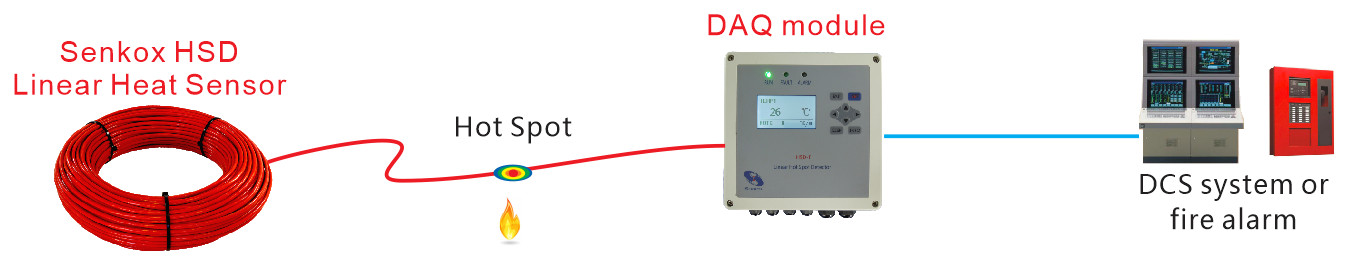

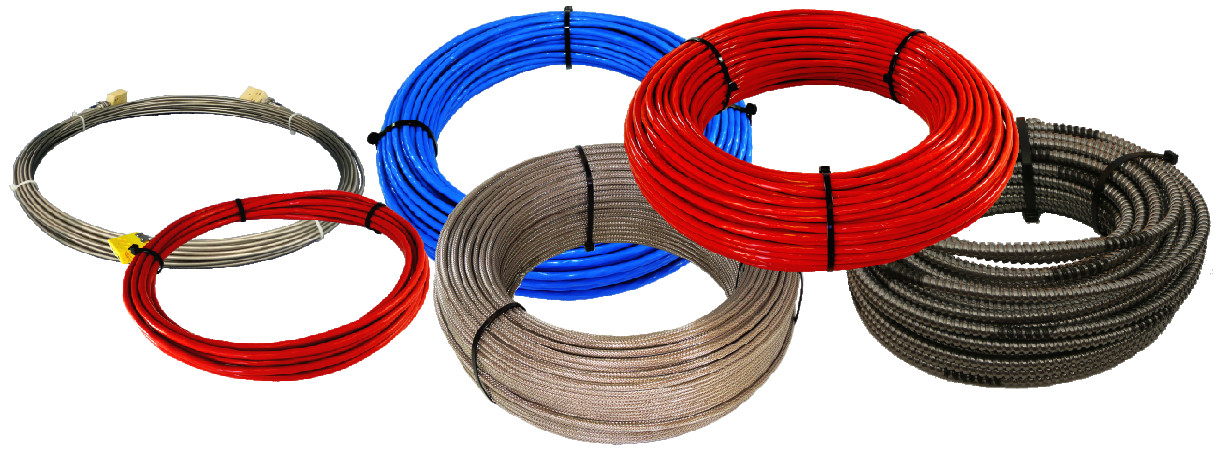

The Senkox HSD™ Linear Heat Sensor continuously detects hot spots along the sensor cable. The hot spot signals generated from the Senkox HSD™ Linear Heat Sensor cables are acquired and processed by the DAQ Module. The processed data is output through the analog output channels (4-20 mA or 0-5V) or the serial communication port (RS485 or RS232, Modbus/RTU protocol) to the user DCS system or fire alarm system.

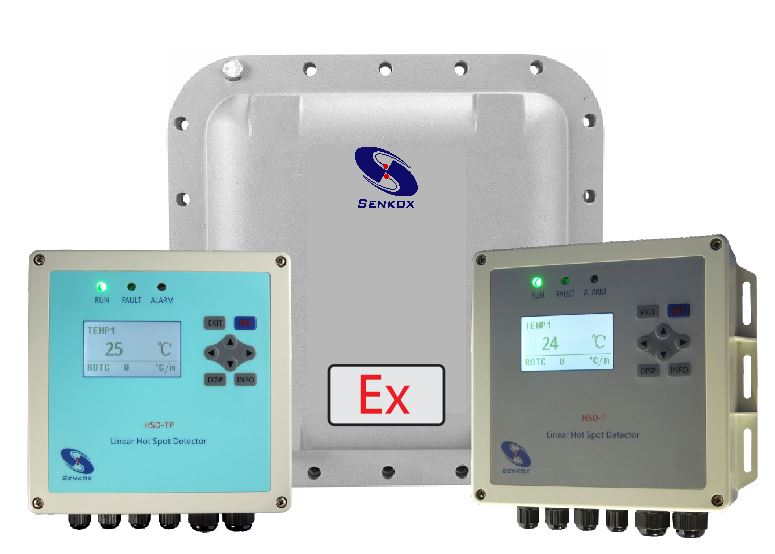

Senkox HSD™ Linear Hot Spot Detectors
Senkox HSD™ Linear Hot Spot Detectors can detect the real-time temperature, position and size of hot spots along the Senkox HSD™ Linear Heat Sensor Cable. The detectors can also provide rate of temperature change (ROTC), and the temperature difference between hot spot and ambient temperature.
Senkox TDS Temperature Monitoring Systems
Senkox TDS™ Temperature Monitoring Systems are a group of pre-configured Senkox products created to address temperature monitoring for specific industrial settings. These customized systems are fully self-contained and simple to install and maintain
Senkox HSD™ 201 Hot Spot Detection Systems
The Senkox HSD™ 201 Hot Spot Detection System is a project-specific temperature monitoring solution, which networks our linear heat sensors (LHS) in different fields into one central control station

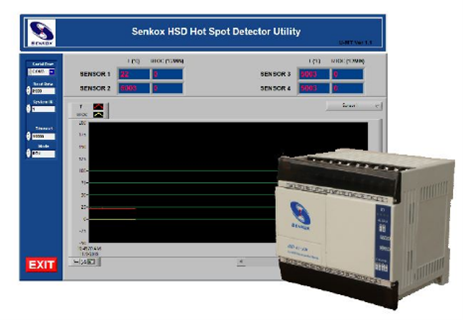

Accessories & Software
Modules, installation accessories and software tools for use with Senkox HSD™ Linear Hot Spot Detection products.
